Tweaking an Interdigital Combline Bandpass Filter

From Sonnet EM Simulator to Kicad to PCB fab to VNA

tldr;

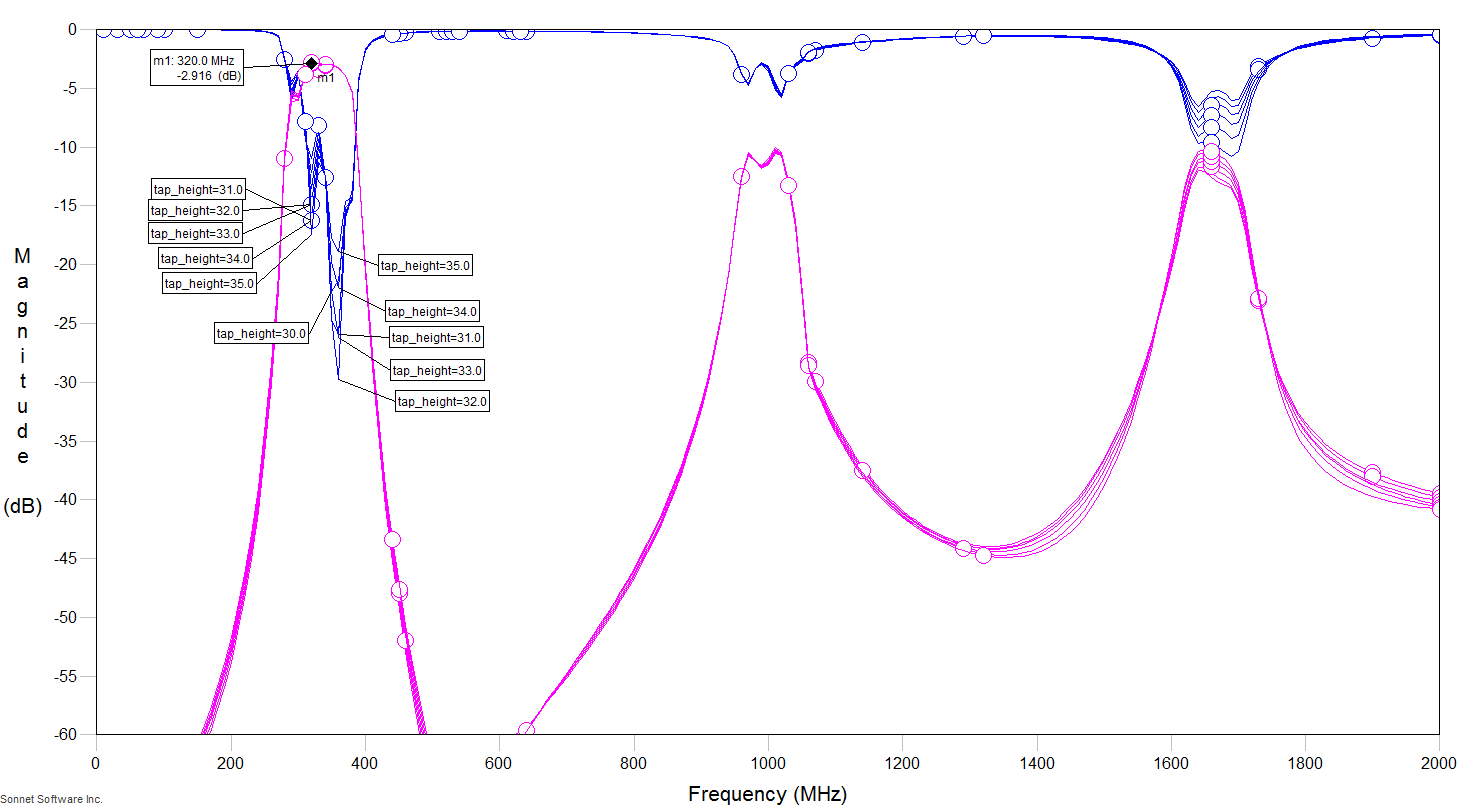

This was not my design. A friend designed the basics for a Deuterium line filter and then I just tuned the tap point of the filter for max in-band return loss. So, I'm not going to make much write-up here. Just some screenshots and a photo of the end result.

After I sent the gerbers off to him he sent them to his choice of fab. When they came back they needed to be trimmed manually a bit (about -5mm off the ends) for max return loss. I haven't actually connectorized or tested by boards from my fab company yet. But in the past Sonnet has been perfect about frequency so my guess is the dielectric constant of my friend's fab's FR4 is slightly different from my fab's FR4.
