Experiments in Stepped Impedance Bandstop Filters

From Sonnet EM Simulator to Kicad to PCB fab to VNA

tldr;

This design uses the reflections at the ends of ~1/4 wavelength long (in terms of the effective dielectric constant) microstrip traces to redirect the energy of a particular frequency to resonator elements (long skinny inductor, fat/wide cap) which then prevent it from flowing through.

[comment on this post] Append "/@say/your message here" to the URL in the location bar and hit enter.

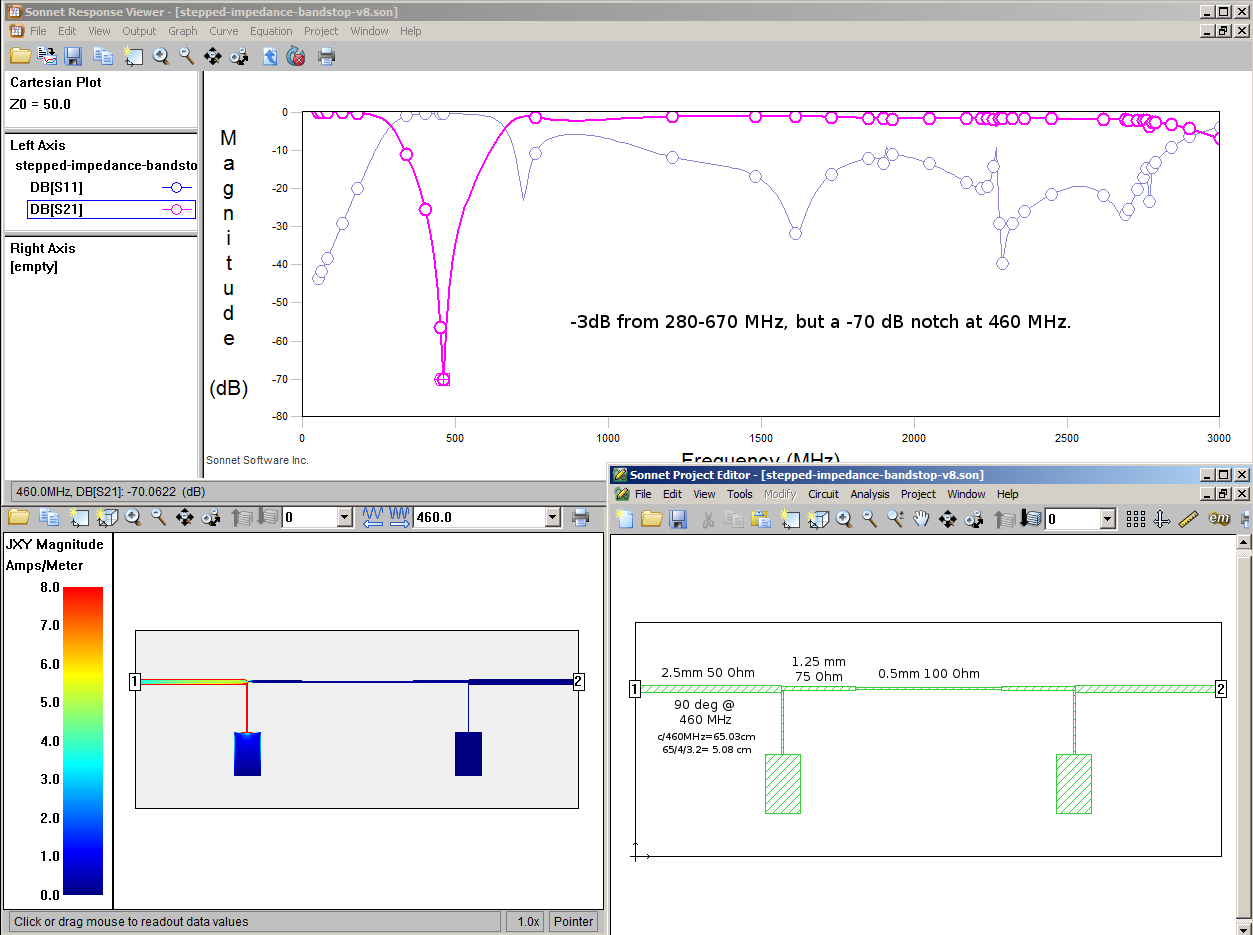

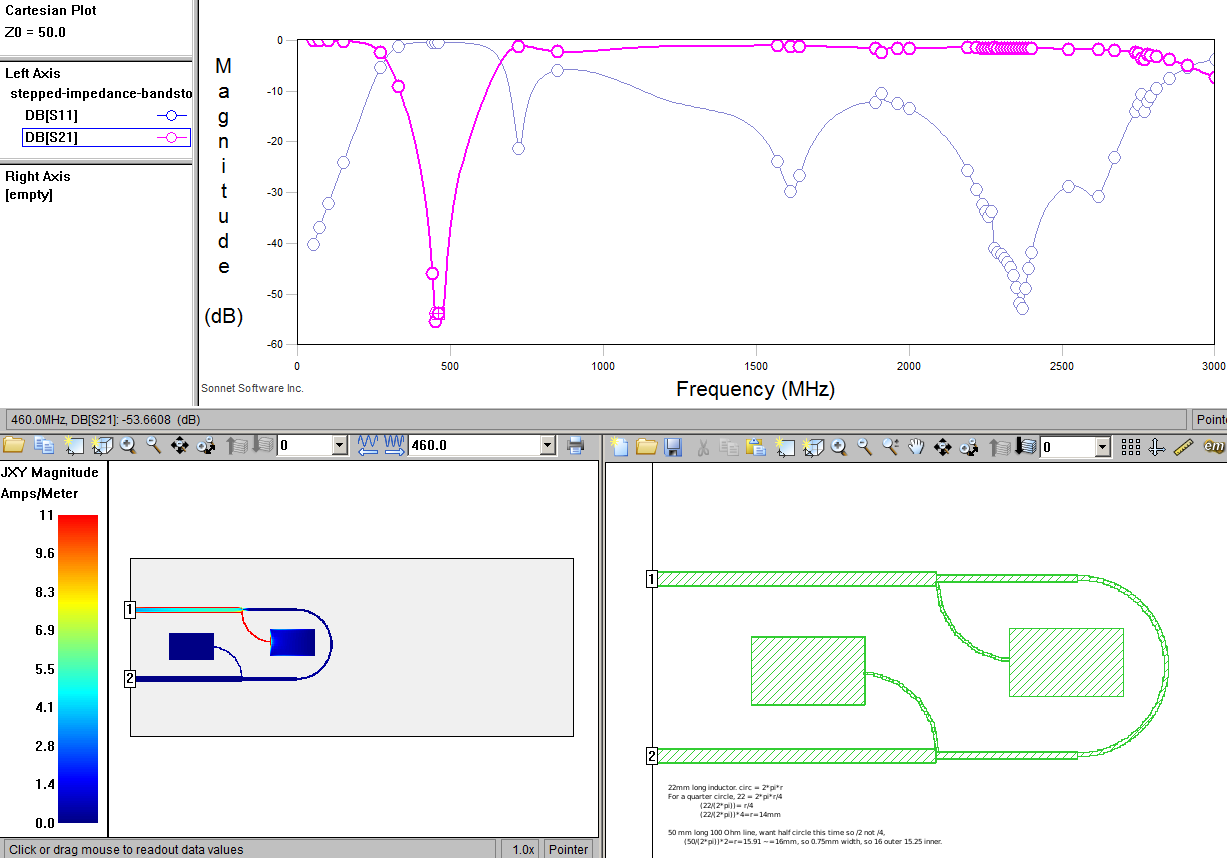

Simulation and design

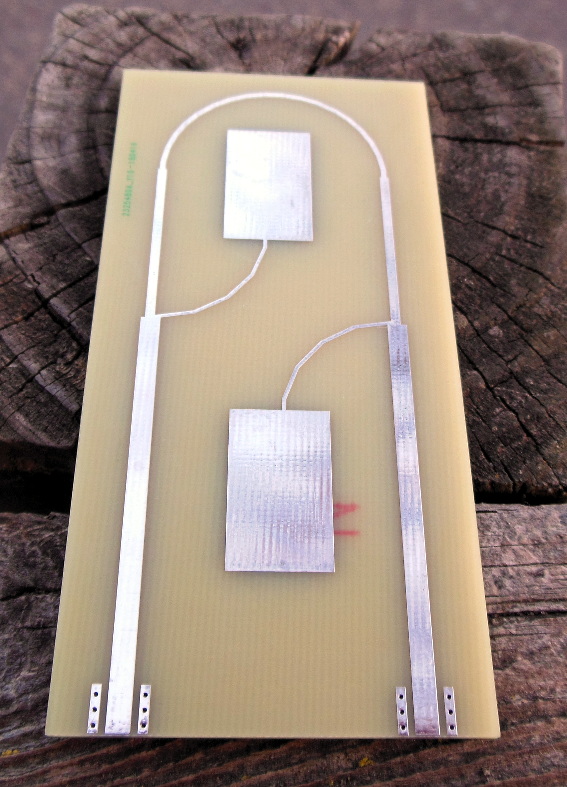

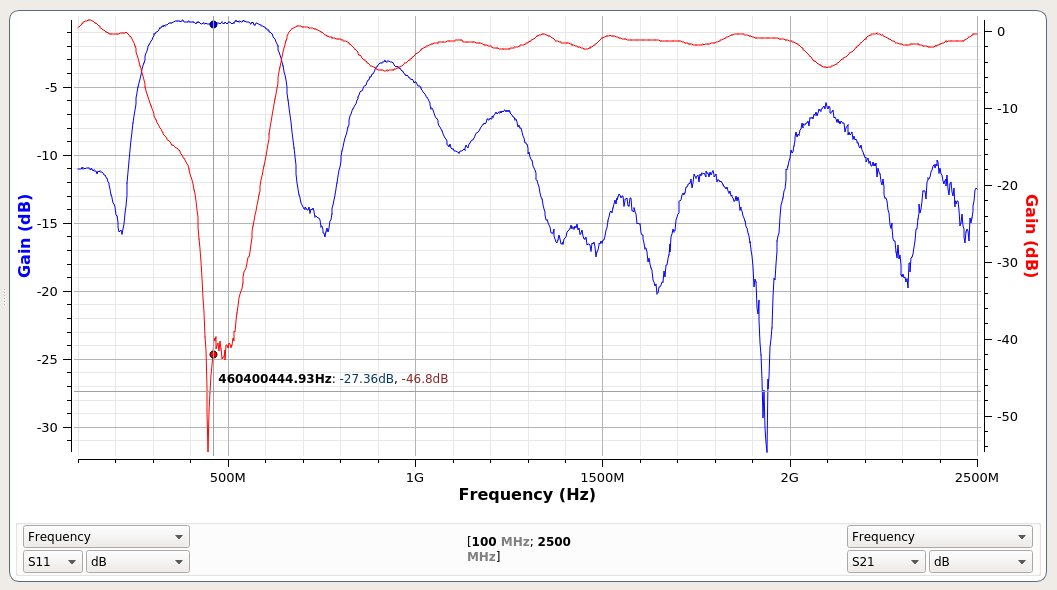

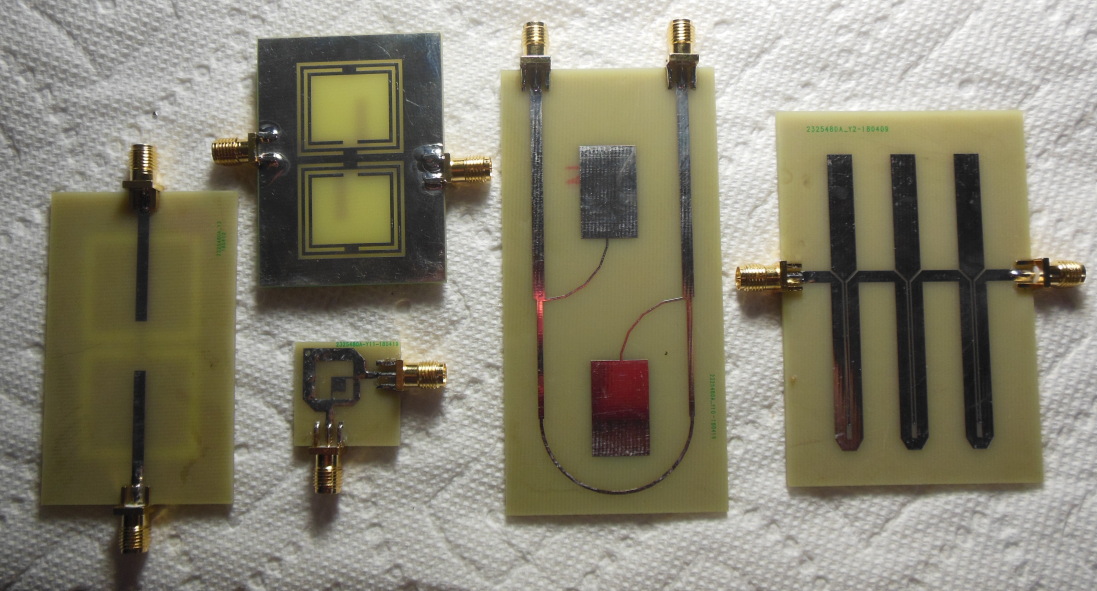

Fabrication and measurement
